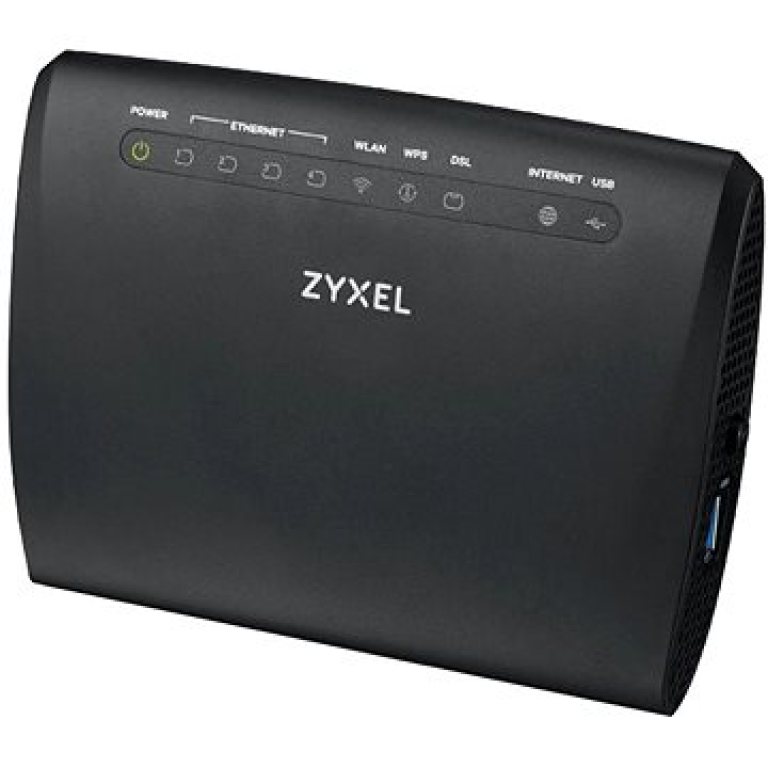

Zyxel VMG3312-T20A

System Specifications Wireless Standard 802.11 bgn 2.4 GHz VDSL Compliance ITU-T G.993.2 VDSL2, band plan 997, 998 VDSL profiles 8abcd, 12ab, 17a, 30a ITU-T G.993.5 G.vector ITU-T G.998.4 G.inp: up to 16 symbols SRA Seamless Rate Adaptation UPBO Upstream Power Back-off PhyR Physical Layer Retransmission TR-114 ADSL Compliance ITU-T G.992.1 G.dmt Annex A ITU-T G.992.2 G.lite Annex A ANSI T1.413 ITU-T G.992.3 ADSL2 ITU-T G.992.5 ADSL2 ITU-T G.998.4 G.inp Reach-Extended ADSL RE ADSL SRA Seamless Rate Adaption PhyR Physical Layer Retransmission TR-067100 WLAN IEEE 802.11 bgn compliance Frequency: 2.4 GHz Data rate: 300 Mbps WPAWPA2 WPA2-PSK with AES WPAWPA2-PSK with AESTKIPAES WEP data encryption 64128 bit Wireless Protected Setup WPS Multi SSID up to 4 and hidden SSID support USB File sharing 3G dongle BridgeRouter PPPoE RFC2516 PPPoA RFC2364 DHCP clientserverrelay DHCP option 6061125 DNS ProxyStatic DNSDNS from ISP NAT EnableDisable Fullcone NAT EnableDisable IGMP Proxy EnableDisable IGMP v1, v2, v3 IEEE 802.1d transparent bridge NAT server Port forwarding Static routepolicy routing IP protocol IPv4IPv6 VLANQoS VLAN Active EnableDisable802.1p 0-7802.1q 1-4094 Support flexible traffic classification TCPUDP port range Ether type NAIPARPPPPoE DiscoveryPPPoE Session802.1Q IPv6 Source & Destination address subnet maskport rangeMACMAC mask Predefine service IP protocol TCPUDPICMPIGMPUser defined DHCP OPT 606177125 Packet length 6-bit DiffServ code point DSCP, RFC 2474 TCP ACK Firewall & Security MAC filter Scheduler rule IPv4IPv6 Firewall Sateful packet inspection Parental control ACL rule support: 32 ACL rules DoS protection Management WebHTTP: 3 level log-in Login privilege Command Line Interpreter CLI via SSH or Telnet Firmware upgrade via WebTFTPFTPTR069 RPC method Text based configuration XML based Configuration backupupdaterestore default via Web Configurable access control for remote management Interface and port number Trust domain DSL forum TR-069, TR-098, TR-181 issue-2, TR-064, TR-111 SNMP v1, v2 Rom-D support TR-069 serial number parameter MUST be device serial number in back label Hardware Specifications WAN One RJ-11 interface for VDSL ADSL2 over POTS One RJ-45 connector for Giga-Ethernet WAN port LAN 4 auto-sensing 10100Mbps Ethernet LAN ports Wireless Two internal antennas 1 USB 2.0 host LED indicator Power, Ethernet, WLAN, WPS, DSL, WAN, Internet, USB Power OnOff button WLANWPS button One button for WLAN onoff One button for WPS configuration ResetRestore button One real button for restore factory default settings Power consumption 10.96 Watt max Package Contents Wireless router Power adapter Ethernet cable RJ-11 cable Quick start guide Safety warning card.
