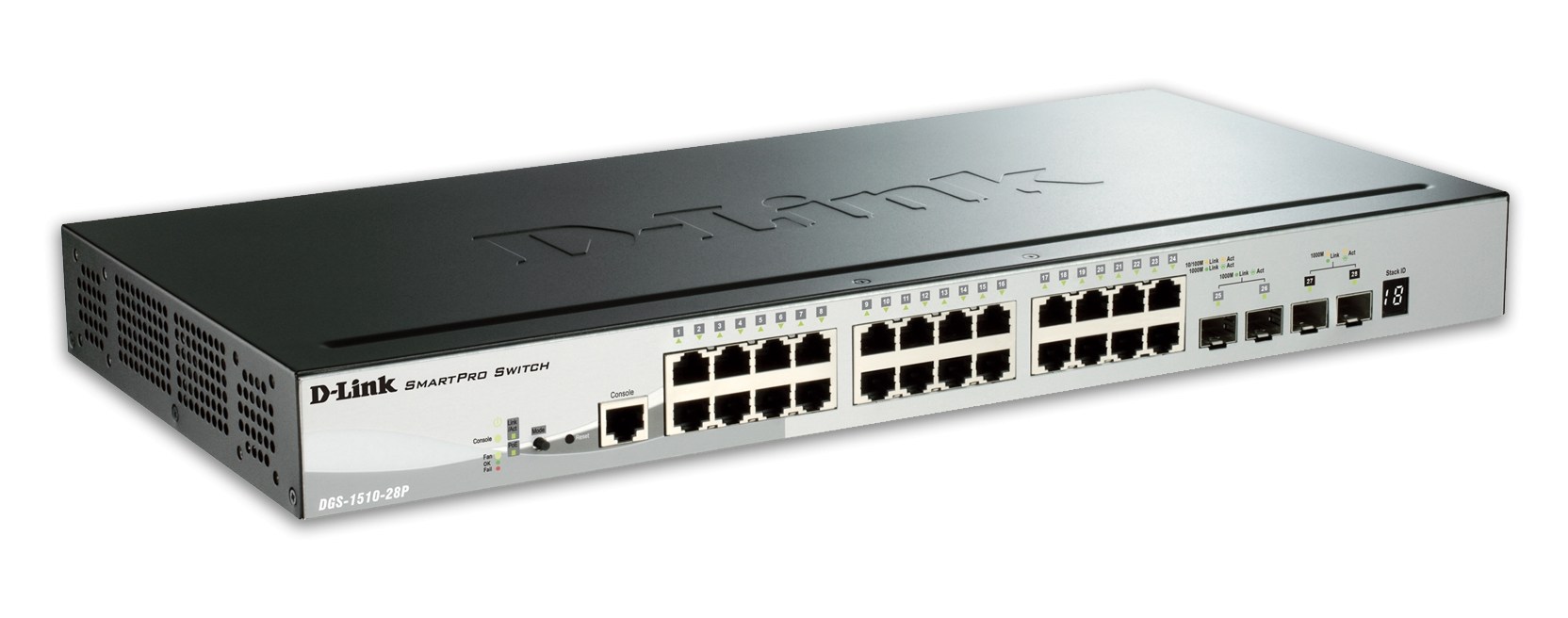

D-Link DGS-1510-28P

Informace k záruce:.Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in.DGS-1510-28P - 24 10/100/1000 Mbps PoE capable, 2 Gigabit SFP, 2 10G SFP+.28 Port Gigabit SmartPro Switch.OVERVIEW.The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port models, these switches also include 2 Gigabit SFP ports and 2 10G SFP+ ports.SPECIFICATIONS.GENERAL.Port Standards & Functions.IEEE 802.3 10BASE-T Ethernet.IEEE 802.3u 100BASE-TX Fast Ethernet.IEEE 802.3ab 1000BASE-T Gigabit Ethernet.802.3ae 10 GbE,.IEEE 802.3x Flow Control for Full-Duplex Mode,.Auto-negotiation.Number of Ports.DGS-1510-28P - 24 10/100/1000 Mbps PoE capable, 2 Gigabit SFP, 2 10G SFP+.Network Cables.UTP Cat. 5, Cat. 5e (100 m max.).EIA/TIA-568 100-ohm STP (100 m max.).Full/Half Duplex.Full/half duplex for 10/100 Mbps and Gigabit speed.Media Interface Exchange.Auto or configurable MDI/MDIX.Performance.Switching Capacity.DGS-1510-28P - 92 Gbps.Transmission Method.Store-and-forward.MAC Address Table.16,000 entries per device.MAC Address Update.Up to 512 static MAC entries.Enable/disable auto-learning of MAC addresses.Maximum 64 bytes Packet Forwarding Rate.DGS-1510-28P - 68.45 Mpps.Packet Buffer Memory.DGS-1510-20/28/28X/28P/28XMP - 1.5 MB per device.PoE (DGS-1510-28P.PoE Standard.IEEE 802.3af, 802.3at.PoE Capable Ports.Ports 1 to 24: Up to 30 W.PoE Power Budget.DGS-1510-28P - Max. 193 W.Physical & Environment.AC Input.100 to 240 VAC 50/60 Hz internal universal power supply.Maximum Power Consumption.DGS-1510-28P – 238.7 W (PoE on), 29 W (PoE off).Standby Power Consumption.DGS-1510-28P -21 W.Smart Fan Quantity.DGS-1510-28P/28XMP/52/52X – 2.Acoustics.DGS-1510-28P – 46.4 dB(A).Heat Dissipation.DGS-1510-28P – 813.967 BTU/hr.Operation Temperature.5 to 50 °C (23 to 122 °F).Storage Temperature.20 to 70°C (.Operation Humidity.0% to 95% non-condensing.Storage Humidity.0% to 95% non-condensing.Dimensions.DGS-1510-28P - 440 x 250 x 44 mm (17.36 x 9.84 x 1.73 inches).Weight.DGS-1510-28P – 2.54 kg.Diagnostic LEDs.Power/Stacking ID/Fan (per device).Power/Stacking ID/Fan Error/PoE Push Button (per device) (for DGS-1210-28P only).Link/Activity/Speed (per 10/100/1000 Mbps port).Link/Activity/Speed/PoE Mode (per 10/100/1000 Mbps port) (for DGS-1210-28P only).Link/Activity/Speed (per Gigabit SFP port).Link/Activity/Speed (per 10G SFP+ port).Certifications.CE.FCC.C-Tick.VCCI.BSMI.CCC.Safety.cUL.CB.Software Features.Stackability.Virtual Stacking Support.D-Link Single IP Management.Up to 32 devices per virtual stack.Up to 20G stacking bandwidth.Physical Stacking1.Supports Duplex Chain/Ring topology.Up to 40G stacking bandwidth full duplex.Up to 6 units per stack.L2 Features.MAC Address Table: Up to 16,384.Flow Control.802.3x Flow Control.HOL Blocking Prevention.Jumbo Frame up to 9,216 Bytes.IGMP Snooping.IGMP v1/v2 Snooping.IGMP v3 awareness.Supports 512 IGMP groups.Supports 128 static multicast addresses.IGMP per VLAN.Supports IGMP Snooping Querier.Host-based IGMP Snooping Fast Leave.MLD Snooping.Supports MLD v1/v2 awareness.Supports 512 groups.Supports 128 Static Multicast Addresses.Per VLAN MLD Snooping.Host-based MLD Fast Leave.MLD Snooping Querier.Spanning Tree Protocol.802.1D STP.802.1w RSTP.802.1s MSTP.Loopback Detection v4.072.802.3ad Link Aggregation.Max. 32 groups per device/8 ports per group.Port Mirroring.Support 4 mirroring groups.One-to-One, Many-to-One.Supports Mirroring for Tx/Rx/Both.Multicast Filtering.Forwards all unregistered groups.Filters all unregistered groups.Ethernet Ring Protection Switching (ERPS).VLAN.802.1Q Tagged VLAN.4K VLAN Groups.Configurable VID: 0~4094.GVRP.Asymmetric VLAN.Auto Voice VLAN.Auto Surveillance VLAN 2.02.MAC-based VLAN.Protocol-based VLAN.
