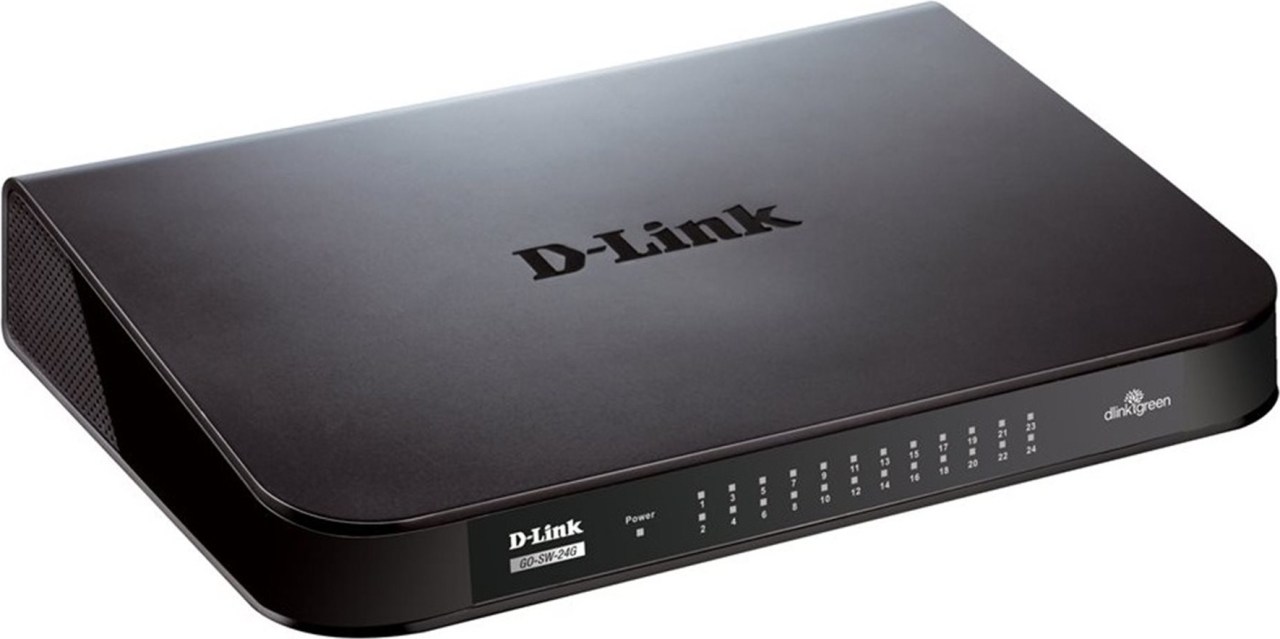

D-Link GO-SW-24G/E

D-Link GO-SW-24G/E 24-Port GIGABIT EASY DESKTOP SWITCH - 16-Port Gigabit Switch - Auto MDI.MDIZ crossover for all ports - Full/half-duplex for Ethernet / Fast Ethernet speeds - Plug-and-play installation - Energy Star Level V qualified - D-Link Green (Automatic port powerdown for unused ports). Physical 16 or 24 Gigabit Ethernet ports for fast network speeds Industry-first plastic case for better heat dissipation and a compact size Fanless design for silent operation Performance IEEE 802.3x Flow Control Auto MDI/MDI-X crossover for all ports Full/half-duplex for Ethernet/Fast Ethernet speeds Supports 9,216 Bytes Jumbo Frames Energy Efficiency Innovative D-Link Green Ethernet Technology conserves energy Link status detection reduces power usage Cable length detection uses energy more efficiently 802.3az EEE hardware implementation reduces power consumption significantly RoHS compliant Easy Installation Plug-and-play installation saves you time Technical Specifications General Number of Ports GO-SW-16G - Sixteen 10/100/1000 Gigabit ports GO-SW-24G - Twenty-four 10/100/1000 Gigabit ports Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control Data Tranfer Rates Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex) Network Cables 10BASE-T: UTP CAT 3, 4, 5/5e (100 m max) EIA/TIA-586 100-ohm STP (100 m max) 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max) EIA/TIA-568 100-ohm STP (100 m max) Functionality D-Link Green Features IEEE 802.3az Energy Efficient Ethernet (EEE) Link status detection power saving Cable length detection power saving RoHS Compliance LAN Features Back pressure at half-duplex operation Auto MDI/MDIX Wire speed reception and transmission Store-and-Forward switching method 8K MAC addresses 2 Mbits RAM for data buffering Jumbo Frames: 9216 Bytes Switching Capacity GO-SW-16G - 32 Gbps GO-SW-24G - 48 Gbps Port Packet Filtering 10M: 14,880 pps 100M: 148,800 pps 1000M: 1,488,000 pps Physical LEDs Power LED GO-SW-16G - 16 Link/Activity/Speed LEDs (one per port) GO-SW-24G - 24 Link/Activity/Speed LEDs (one per port) Power Inputs GO-SW-16G - Switching 12V/1A level V power adapter GO-SW-24G - Switching 12V/1.5A level V power adapter Power Consumption Power on (standby): GO-SW-16G - AC input: 2.64 Watts GO-SW-24G - AC input: 4.94 Watts Power max.: GO-SW-16G - AC input: 9.00 Watts GO-SW-24G - AC input: 15.7 Watts Heat Dissipation Power on (Standby): GO-SW-16G - AC input: 9.01 BTU/h GO-SW-24G - AC input: 16.86 BTU/h Power max.: GO-SW-16G - AC input: 30.717 BTU/h GO-SW-24G - AC input: 53.58 BTU/h MTBF GO-SW-16G - 319,267 hours GO-SW-24G – 336,072 hours Dimensions GO-SW-16G - 231 x 158 x 46 mm (9.1 x 6.2 x 1.8 inches) GO-SW-24G - 257 x 178 x 46 mm (10.1 x 7.0 x 1.8 inches) Weight GO-SW-16G - 0.58 kg (1.28 pounds) GO-SW-24G0.76 kg (1.68 pounds) Operating Temperature 0 to 40 °C (32 to 104 °F) Storage Temperature -10 to 70 °C (14 to 158 °F) Humidity 5% to 90% non-condensing Certifications FCC Class A ICES-003 Class A CE Class A C-Tick Class A CB cUL.
