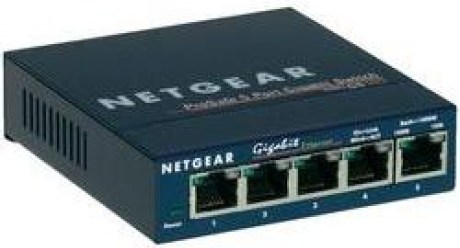

Netgear GS105

Doporučujeme: Top 20 produktů z kategorie Switche

Podrobnosti Fanless (bez ventilátoru)Network Ports5 auto-sensing UTP ports Forwarding ModeStore-and-Forward 128K On-Chip Packet Buffering PerformanceBandwidth: 10 Gbps (non-blocking) Forward Rate (10 Mbps port): 14,800 packets/sec Forward Rate (100 Mbps port): 148,000 packets/sec Forward Rate (1000 Mbps ...viac

Na skladě Zobrazit cenu včetně dopravy

Nejoblíbenější produkty v kategórií Switche

Popis

Podrobnosti Fanless (bez ventilátoru)Network Ports

  • 5 auto-sensing UTP ports
Forwarding Mode
  • Store-and-Forward
  • 128K On-Chip Packet Buffering
Performance
  • Bandwidth: 10 Gbps (non-blocking)
  • Forward Rate (10 Mbps port): 14,800 packets/sec
  • Forward Rate (100 Mbps port): 148,000 packets/sec
  • Forward Rate (1000 Mbps port): 1,480,000 packets/sec
  • Network Latency (100 to 100 Mbps): 20 µs (max)
  • Network Latency (1000 to 1000 Mbps): 10 µs (max)
  • Queue Buffer Memory: 12 kbytes per port
  • MAC address database: 4,000
  • Mean Time Between Failure (MTBF): 91,500 hours (~10 years)
Status LEDs
  • System power per port: Link, speed and activity
AC Power
  • 12W
  • 12VAC, 1A
Physical Specifications
  • Dimensions (w x d x h): 93 x 105 x 27 mm (3.7 x 4.1 x 1.1 in)
  • Weight: 300 g (0.66 lb)
Environmental Specifications
  • Operating Temperature: 0o to 50o C (32o to 122o F)
  • Operating Humidity: 10% to 90% non-condensing
  • Storage Specifications -20o to 70° C (-4o to 158o F) 10% to 95% Relative Humidity
Standards Compliance
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3z 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x Full-duplex Flow Control
  • IEEE 801.p priority tags
  • DSCP priority tags
  • Jumbo Frame support (9,000 byte)
  • Windows®, MAC OS, NetWare®, Linux®
Safety Agency Approvals
  • UL (UL 60950), CUL, C-Tick, CE Mark, licensed (EN 60950)
Emissions
  • FCC Class A and VCCI Class A, CE Class A
Package Contents
  • ProSafe 5-Port Gigabit Ethernet Desktop Switch 10/100/1000 (GS105v2)
  • Wall-mount kit
  • Power adapter
  • Installation guide
  • Warranty & support information card
.
