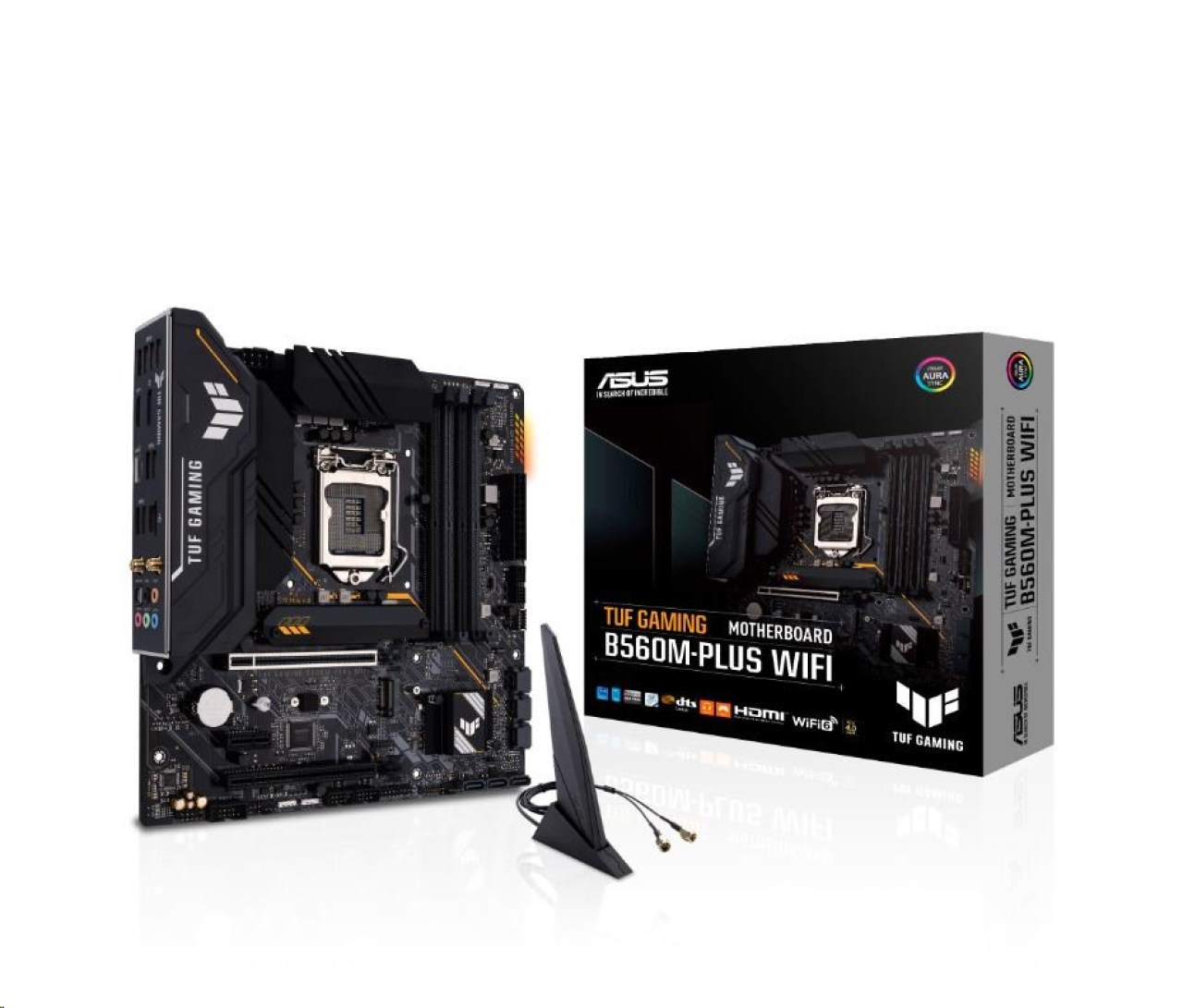

Asus TUF GAMING B560M-PLUS WIFI

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors& 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset B560 Memory Memory Channels:4xDDR4 (Dual channel) Max Memory Size:128GB DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. Graphics 1 x DisplayPort 1.4 1 x HDMI™ 2.0 Graphics specifications may vary between CPU types. Intel® 11th& 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.Please refer to www.intel.com for any updates. Expansion Slots 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th&10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® 11th Gen processors support PCIe 4.0 x16 Intel®10th Gen processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots Storage Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4& SATA modes) 6 x SATA 6Gb/s ports To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless& Bluetooth Intel® Wi-Fi 6 USB Rear USB:Total 9 ports 2 x USB 3.2 Gen 2 port (2 x Type-A) 3 x USB 3.2 Gen 1 port (2 x Type-A+ 1 x USB Type-C®) 4 x USB 2.0 port (4 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen Gen 1 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header support additional 4 USB 2.0 ports Audio ALC887/897 Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Rear optical S/PDIF out port Premium Japanese audio capacitors Dedicated audio PCB layers Back Panel I/O Ports 2 x USB 3.2 Gen 2 port (2 x Type-A) 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Intrernal I/O Connectors 1 x TB Header (for add-on TB card) 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan header 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 connector (support USB Type-C®) 1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header support additional 4 USB 2.0 ports 2 x AURA Addressable Gen 2 header 2 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header Special Features ASUS TUF PROTECTION Digital power design with DrMOS Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution Flexible M.2 heatsink VRM heatsink design ASUS EZ DIY ProCool Pre-mounted I/O shield AURA Sync AURA RGB header(s) Addressable Gen 2 RGB header(s) Software Features ASUS Exclusive Software Armoury Crate AURA Creator AURA Sync Two-Way AI Noise Cancelation AI Suite 3 Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Operating System Windows 10 64bit Form Factor microATX 24.4cm x 24.4cm.
