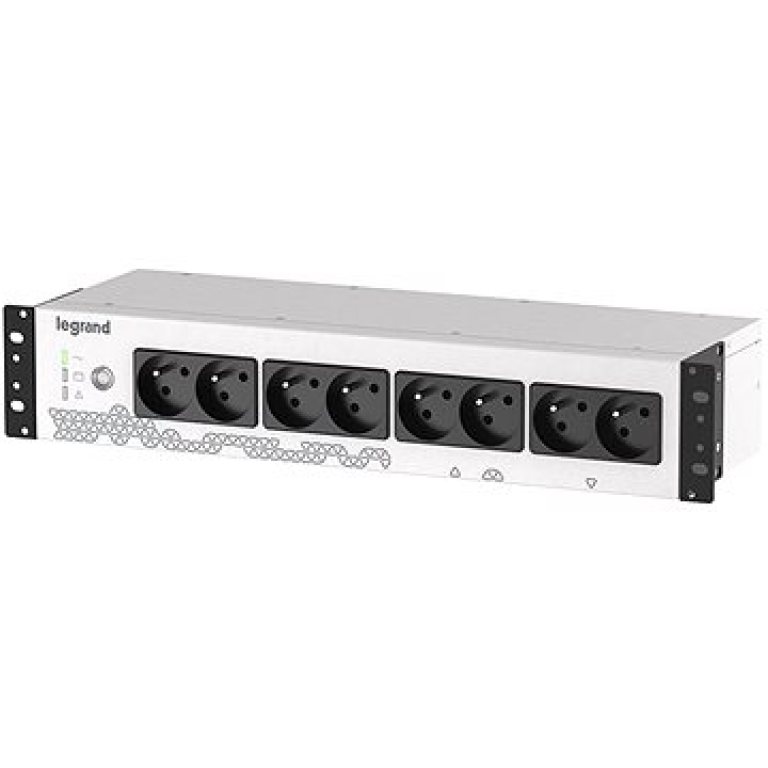

Legrand Keor PDU 800VA

Keor PDU is a new UPS specifically designed for installation in 19-inch panels and racks. Its PDU style design with ultra compact dimensions provides 8 sockets with up to 15 minute autonomy in just 2 rack units. Characteristics 3 LEDs to monitor UPS status in real-time Low energy consumption Economically advantageous solution More sockets with complete protection Front installation and maintenance Silent operations Less space occupied inside the cabinet Lower installation weight Wiring and installation simplicity Model KEOR PDU 800 General features: Nominal power (VA) 800 Active power (W) 480 Technology Off-Line VFD Waveform Simulated sinewave Input: Input Socket 1 IEC 10A Nominal voltage (V) 230 Voltage range (V) 180 - 270 Frequency (Hz) 50 - 60 } 5Hz Output: Outlets type: - IEC Version - Backup: 8*C13 Voltage (V) 230 } 10% Frequency (Hz) 50 - 60 } 1Hz Protections: Full protection Deep Discharge, Over-Load and Short-Circuit Protection Type Fuse Batteries: Number of batteries 1 Battery series Type / Voltage VRLA 9 Ah Communication and Management: Interface LED bar (green / orange / red) USB HID Type B Alarms Visual (LED bar), Audible (buzzer) Mechanical Features: Measurements W x D x H (mm) 19" x 150mm x 2U Net Weight (kg) 5,5 Environmental Conditions: Operating temperature (‹C) 0. 40 Relative humidity (%)< 95 (without condensing) Noise level (dB). 40 Certifications: Standards and marks EN 62040-1, EN 62040-2, CE.
