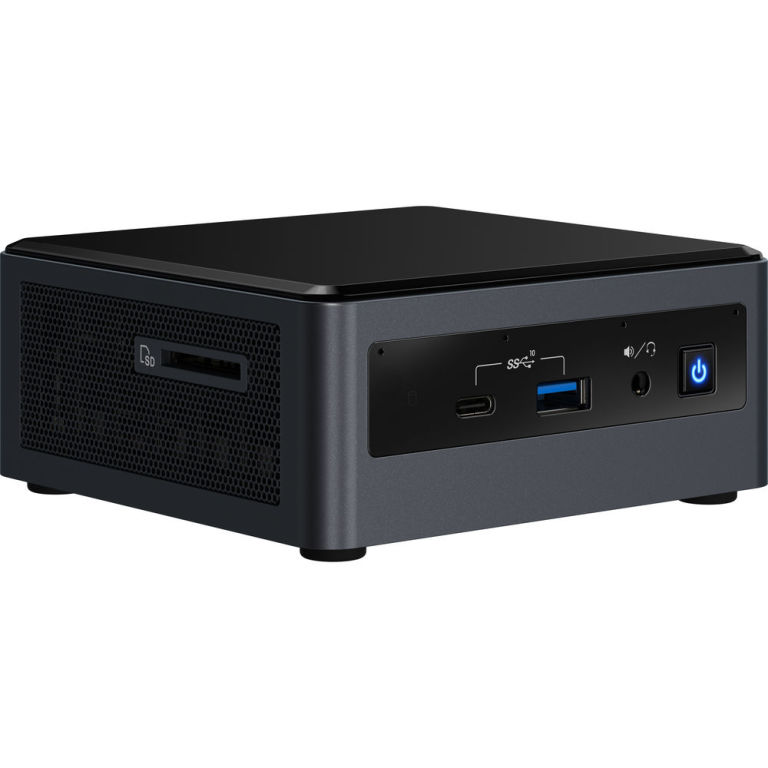

INTEL NUC Frost Canyon KitNUC10i5FNHFi5 10210UHDMIWFUSB3.0M.2 2,5" Essentials: Product Collection Intel® NUC Kit with 10th Generation Intel® Core™ Processors Code Name Products formerly Frost Canyon Supported Operating Systems Windows 10, 64-bit Board Number NUC10i3FNB Board Form Factor UCFF 4" x 4" ...viac

Nejoblíbenější produkty v kategórií Mini PC

Popis

INTEL NUC Frost Canyon KitNUC10i5FNHFi5 10210UHDMIWFUSB3.0M.2 2,5" Essentials: Product Collection Intel® NUC Kit with 10th Generation Intel® Core™ Processors Code Name Products formerly Frost Canyon Supported Operating Systems Windows 10, 64-bit Board Number NUC10i3FNB Board Form Factor UCFF 4" x 4" Socket Soldered-down BGA Internal Drive Form Factor M.2 and 2.5" Drive # of Internal Drives Supported 2 Lithography 14 nm TDP 25 W DC Input Voltage Supported 19 VDC Processor Included Intel® Core™ i5-10210U Processor 6M Cache, up to 4.20 GHz Intel® vPro™ Platform Eligibility ‡ No # of Cores 4 # of Threads 8 Processor Base Frequency 1.60 GHz Max Turbo Frequency 4.20 GHz Warranty Period 3 yrs Memory & Storage Max Memory Size dependent on memory type 64 GB Memory Types DDR4-2666 1.2V SO-DIMM Max # of Memory Channels 2 Max Memory Bandwidth 42.6 GBs Max # of DIMMs 2 ECC Memory Supported ‡ No Processor Graphics Processor Graphics ‡ Intel® UHD Graphics Integrated Graphics ‡ Yes Graphics Output HDMI 2.0a; USB-C DP1.2 # of Displays Supported ‡ 3 Expansion Options PCI Express Revision Gen3 PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes Removable Memory Card Slot SDXC with UHS-II support M.2 Card Slot storage 22x4280 IO Specifications # of USB Ports 7 USB Configuration 2x front Type-A, Type-C and 3x rear USB 3.1 Gen2 2x Type-A, Type-C; 2x USB 2.0 via internal headers USB Revision 2.0, 3.1 Gen2 USB 2.0 Configuration External Internal 0 2 USB 3.0 Configuration External Internal 2B 2F 0 Total # of SATA Ports 2 Max # of SATA 6.0 Gbs Ports 2 RAID Configuration 2.5" HDDSSD M.2 SATA SSD RAID-0 RAID-1 Audio back channel front channel 7.1 digital HDMI mDP; LR mic F Integrated LAN Intel® Ethernet Connection I219-V Integrated Wireless‡ Intel® Wi-Fi 6 AX201 Integrated Bluetooth Yes Consumer Infrared Rx Sensor Yes Additional Headers CEC, 2x USB2.0, FRONT PANEL # of Thunderbolt™ 3 Ports 1 Package Specifications Chassis Dimensions 117 x 112 x 51mm Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Virtualization Technology for Directed IO VT-d ‡ Yes Intel® vPro™ Platform Eligibility ‡ No TPM No Intel® HD Audio Technology Yes Intel® Rapid Storage Technology Yes Intel® Virtualization Technology VT-x ‡ Yes Intel® Platform Trust Technology Intel® PTT Yes Security & Reliability Intel® AES New Instructions Yes Stránky o produktu: https:ark.intel.comcontentwwwusenarkproducts189239intel-nuc-10-performance-kit-nuc10i5fnh.html Seznam kompatibility Intel NUC: https:compatibleproducts.intel.com.
