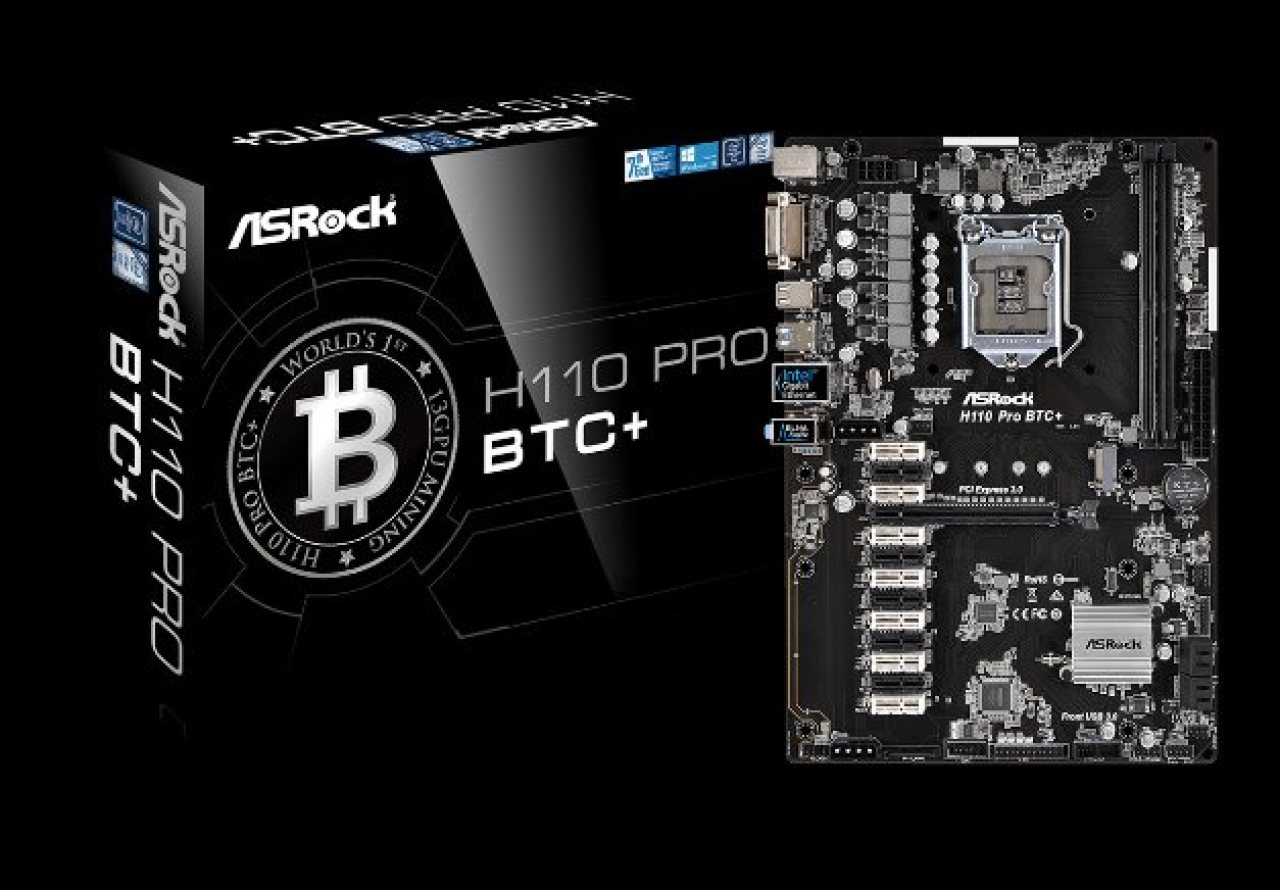

Asrock H110 Pro BTC+

Unique Feature.ASRock Super Alloy.Sapphire Black PCB.High Density Glass Fabric PCB.ASRock Full Spike Protection (for all USB, Audio, LAN Ports).ASRock Live Update & APP Shop.CPU.Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1151).Supports CPU up to 91W.Digi Power design.8 Power Phase design.Supports Intel® Turbo Boost 2.0 Technology.Chipset.Intel® H110.Memory.Dual Channel DDR4 Memory Technology.2 x DDR4 DIMM Slots.Supports DDR4 2400/2133 non.. ECC, un.Supports ECC UDIMM memory modules (operate in non.Max. capacity of system memory: 32GB*.Supports Intel® Extreme Memory Profile (XMP) 2.0.15µ Gold Contact in DIMM Slots.7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.BIOS.64Mb AMI UEFI Legal BIOS with multilingual GUI support.ACPI 5.0 Compliant wake up events.SMBIOS 2.7 Support.CPU, DRAM, PCH 1.05V Voltage multi.Graphics.Supports Intel® HD Graphics Built.. in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG.Gen9 LP, DX11.3, DX12.HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel® CPU).HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU).Max. shared memory 1024MB**.Supports DVI.Supports Accelerated Media Codecs: HEVC, VP8, VP9.Supports HDCP with DVI.Supports Full HD 1080p Blu.. ray (BD) playback with DVI.Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.The size of maximum shared memory may vary from different operating systems.Audio.7.1 CH HD Audio (Realtek ALC887 Audio Codec)*.Supports Surge Protection.ELNA Audio Caps.To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.LAN.Gigabit LAN 10/100/1000 Mb/s.Giga PHY Intel® I219V.Supports Wake.. On.Supports Lightning/ESD Protection.Supports Energy Efficient Ethernet 802.3az.Supports PXE.Slots.1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*.12 x PCI Express 2.0 x1 Slots.Supports NVMe SSD as boot disk.Storage.4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*.1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module.If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.Connector.1 x Print Port Header.1 x COM Port Header.1 x TPM Header.1 x Chassis Intrusion and Speaker Header.1 x CPU Fan Connector (4.2 x Chassis Fan Connectors (4.1 x 24 pin ATX Power Connector.1 x 8 pin 12V Power Connector.2 x PCIe Power Connectors.1 x Front Panel Audio Connector.1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection).1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection).The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.Rear Panel I/O.1 x PS/2 Mouse Port.1 x PS/2 Keyboard Port.1 x DVI.4 x USB 2.0 Ports (Supports ESD Protection).2 x USB 3.1 Gen1 Ports (Supports ESD Protection).1 x RJ.HD Audio Jacks: Line in / Front Speaker / Microphone.Software and UEFI.Software.ASRock APP Charger.ASRock XFast LAN.UEFI.ASRock Instant Flash.These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD.Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar.Accessories.Quick Installation Guide, Support CD, I/O Shield.2 x SATA Data Cables.1 x Screw for M.2 Socket.Hardware Monitor.CPU/Chassis temperature sensing.CPU/Chassis Fan Tachometer.CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature).CPU/Chassis Fan multi.CASE OPEN detection.Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore.Form Factor.ATX Form Factor: 12.0.. in x 8.2.Solid Capacitor design.OS.Microsoft® Windows® 10 64.Microsoft® Windows® 10 64.. bit / 8.1 64.. bit / 7 32.. bit / 7 64.To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.Certifications.FCC, CE.
