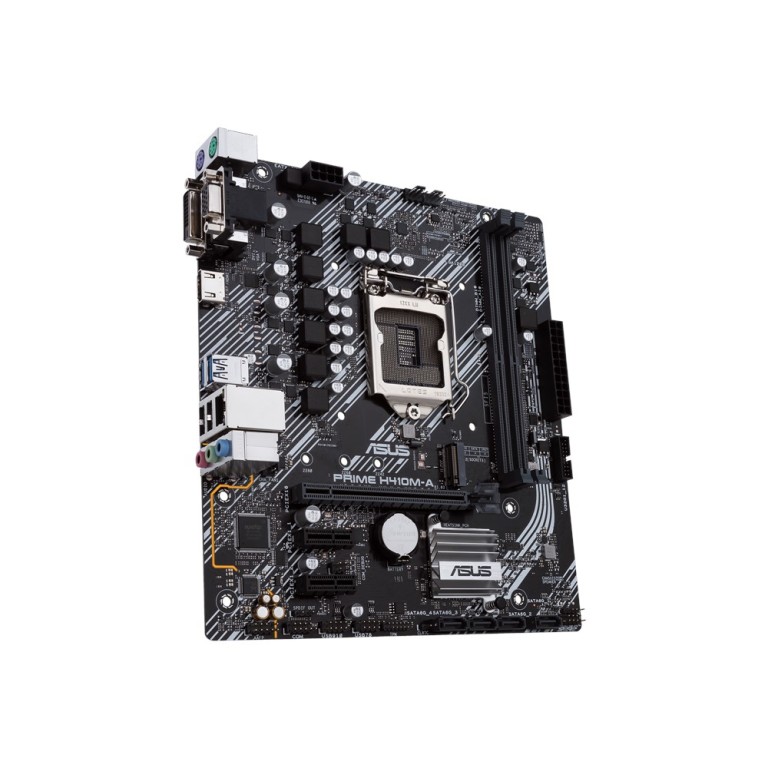

Asus PRIME H410M-A

CPU Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H410 Memory 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor 1 x D-Sub 1 x DVI-D 1 x HDMI 1.4b Graphics specifications may vary between CPU types. Expansion Slots Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® H410 Chipset 2 x PCIe 3.0 x1 Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA& PCIE 3.0 X2 mode) 4 x SATA 6Gb/s port LAN Realtek® RTL8111H Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : LED-illuminated design Audio Shielding Dedicated audio PCB layers Premium Japanese audio capacitors USB Ports Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port (2 x Type-A) 2 x USB 2.0 port (2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port 4 x USB 2.0 port ASUS Exclusive Software Armoury Crate AI Suite 3 Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III ASUS DIGI+ VRM ASUS LANGuard ASUS Overvoltage Protection ASUS SafeSlot Core ASUS Stainless-Steel Back I/O ASUS Q-Design ASUS Q-DIMM ASUS Q-Slot ASUS Thermal Solution Aluminum heatsink design Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack Internal I/O Ports 1 x CPU Fan connector 2 x Chassis Fan connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector support additional 2 USB 3.2 Gen 1 port 2 x USB 2.0 connector support additional 4 USB 2.0 port 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA& PCIE 3.0 X2 mode) 1 x SPI TPM header 1 x COM port connector 4 x SATA 6Gb/s connector 1 x S/PDIF out header 1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector (AAFP) 1 x Clear CMOS jumper 1 x System panel connector 1 x Speaker connector Operating System Windows® 10 64-bit Form Factor mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ).
