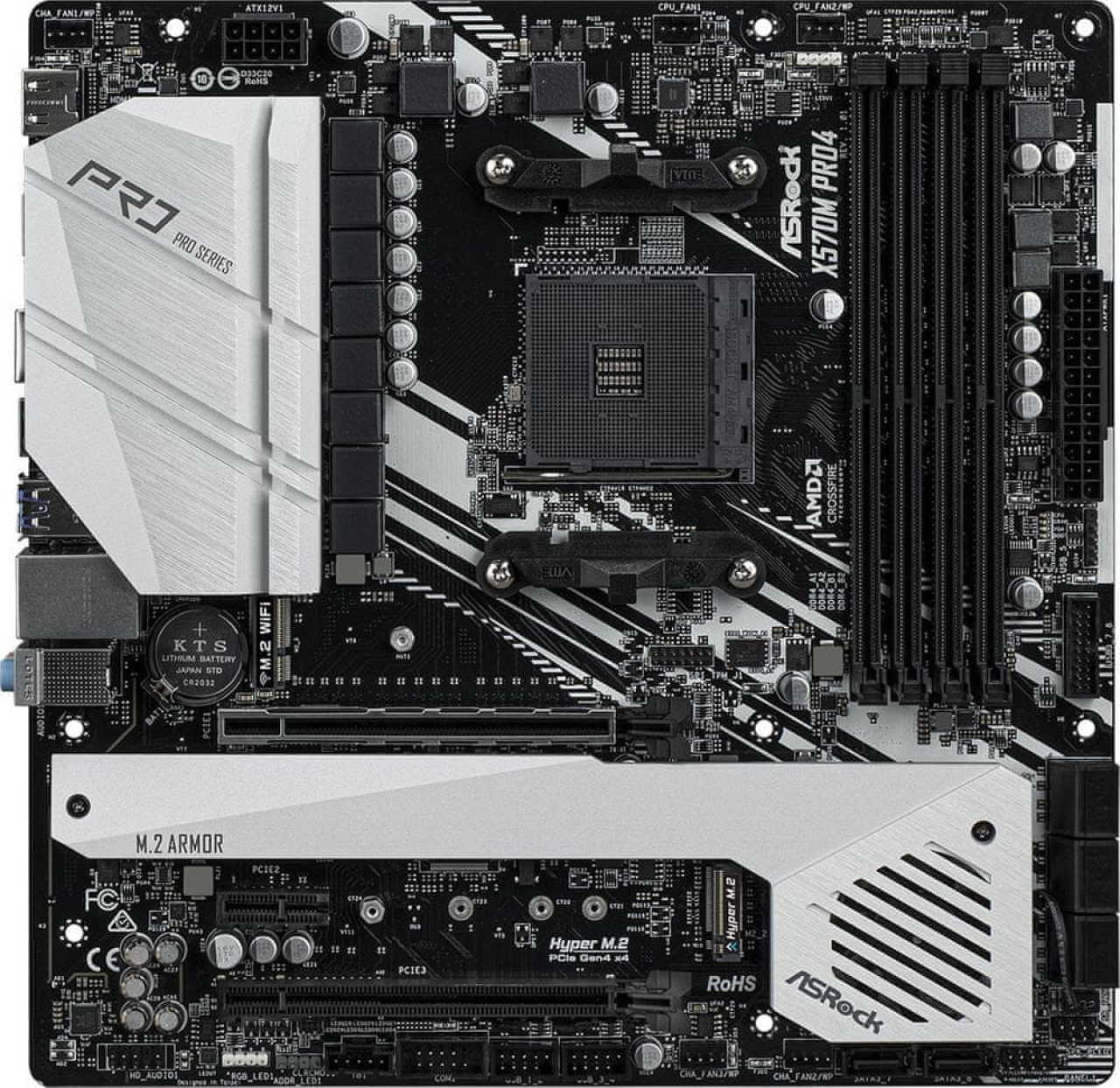

PodrobnostiX570M PRO 4
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- 10 Power Phase Design
- Supports DDR4 4200+ (OC)
- 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3),
- 1 Hyper M.2 (PCIe Gen4 x4)
- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
TECHNICAL SPECIFICATIONSPlatform- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm- Solid Capacitor design- 2oz Copper PCBUnique FeatureASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4 & SATA3)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopCPU- Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors- Digi Power design- 10 Power Phase designChipset- AMD X570Memory- Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 4200+(OC)/4133(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory** For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.* Please refer to Memory Support List on ASRock''s website for more information.(http://www.asrock.com/)- Max. capacity of system memory: 64GB- 15µ Gold Contact in DIMM Slots* Please refer to below table for AMD non-XMP memory frequency support.For more details, please refer to the QVL on ASRock''s website.Expansion SlotAMD Ryzen series CPUs (Matisse)- 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1);dual at x16 (PCIE1) / x4 (PCIE3))*AMD Ryzen series CPUs (Pinnacle Ridge)- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1);dual at x16 (PCIE1) / x4 (PCIE3))*AMD Ryzen series CPUs (Picasso)- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1);dual at x8 (PCIE1) / x4 (PCIE3))** Supports NVMe SSD as boot disks- 1 x PCI Express 4.0 x1 Slot- Supports AMD Quad CrossFireXTM and CrossFireXTM- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module- 15µ Gold Contact in VGA PCIe Slot (PCIE1)Graphics- Integrated AMD RadeonTM Vega Series Graphics in Ryzen Series APU** Actual support may vary by CPU- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.* The Max shared memory 16GB requires 32GB system memory installed.- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independentdisplay controllers- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit RateAudio) with HDMI 1.4 Ports (Compliant HDMI monitor is required)- Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports- Supports Microsoft PlayReady®Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- ELNA Audio Caps- PCB Isolate Shielding- Individual PCB Layers for R/L Audio ChannelLAN- Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I211AT- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXERear Panel I/O- 3 x Antenna Ports (on I/O Panel Shield)- 1 x PS/2 Mouse/Keyboard Port- 1 x HDMI Port- 1 x DisplayPort 1.2- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / MicrophoneStorage- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10),NCQ, AHCI and Hot Plug- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280/22110 M.2PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) orGen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)(with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)** Supports NVMe SSD as boot disks* Supports ASRock U.2 KitConnector- 1 x COM Port Header- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x AMD Fan LED Header* The AMD Fan LED Header is compatible with a regular RGB LED stripe.* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.- 1 x RGB LED Header* Supports in total up to 12V/3A, 36W LED Strip- 1 x Addressable LED Header* Supports in total up to 5V/3A, 15W LED Strip- 1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pinor 4-pin fan is in use.- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 1 x AMD LED Fan USB Header- 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)BIOS Feature- 256Mb AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU VCORE, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERMVDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustmentSupport CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarSoftware and UEFISoftware- ASRock A-Tuning- ASRock Polychrome SYNC- ASRock XFast LAN* These utilities can be downloaded fromASRock Live Update & APP Shop.UEFI- ASRock Full HD UEFI- ASRock Instant Flash- ASRock Easy RAID InstallerHardware Monitor- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/WaterPump, Chassis, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM,PREM VDDCR_SOC, +1.8V, VDDPOperating System- Microsoft® Windows® 10 64-bitCertifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)Accessories- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket.
