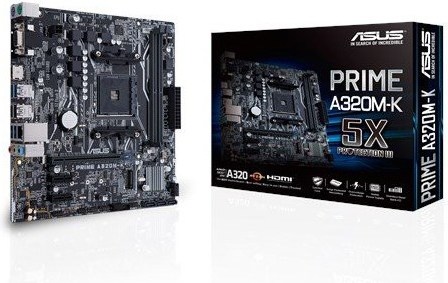

Asus PRIME A320M-K

PodrobnostiTECHNICAL SPECIFICATIONSCPUAMD AM4 Socket for 2nd/1st AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors* Refer to www.asus.com for CPU support listChipsetAMD A320MemoryAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered MemoryAMD 7th Generation A-Series/Athlon X4 Processors2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).GraphicIntegrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series APUMulti-VGA output support : HDMI/RGB ports- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 2048 MB (for iGPU exclusively)Expansion SlotsAMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors1 x PCIe 3.0/2.0 x16 (x16 mode)AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors1 x PCIe 3.0/2.0 x16 (x8 mode)AMD Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x4 mode)AMD A320 chipset2 x PCIe 2.0 x1StorageAMD A320 chipset :4 x SATA 6Gb/s port(s), gray,Support Raid 0, 1, 10AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)AMD 7th Generation A-Series/ Athlon™ X4 Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)AMD Athlon™ with Radeon™ Vega Graphics Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)LANRealtek® RTL8111H, 1 x Gigabit LAN Controller(s)AudioRealtek® ALC887 8-Channel High Definition Audio CODECUSB PortsAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon™ X4 Processors :4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)AMD A320 chipset :2 x USB 3.0 port(s) (2 at mid-board)AMD A320 chipset :6 x USB 2.0 port(s) (2 at back panel,, 4 at mid-board)Special FeaturesASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 6 Phase digital power designASUS Exclusive Features:- AI Suite 3- Ai Charger ASUS Quiet Thermal Solution:- Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert ASUS EZ DIY:- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- Multi-language BIOSASUS Q-Design:- ASUS Q-Slot- ASUS Q-DIMMBack I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.0 (blue) 2 x USB 2.0 3 x Audio jack(s)Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) 1 x Clear CMOS jumper(s)1 x Speaker connectorAccessoriesUser''s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVDBIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan ControlOperating SystemWindows® 10 64-bitWindows® 7 64-bit *1Form FactormATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)Note*1 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.
