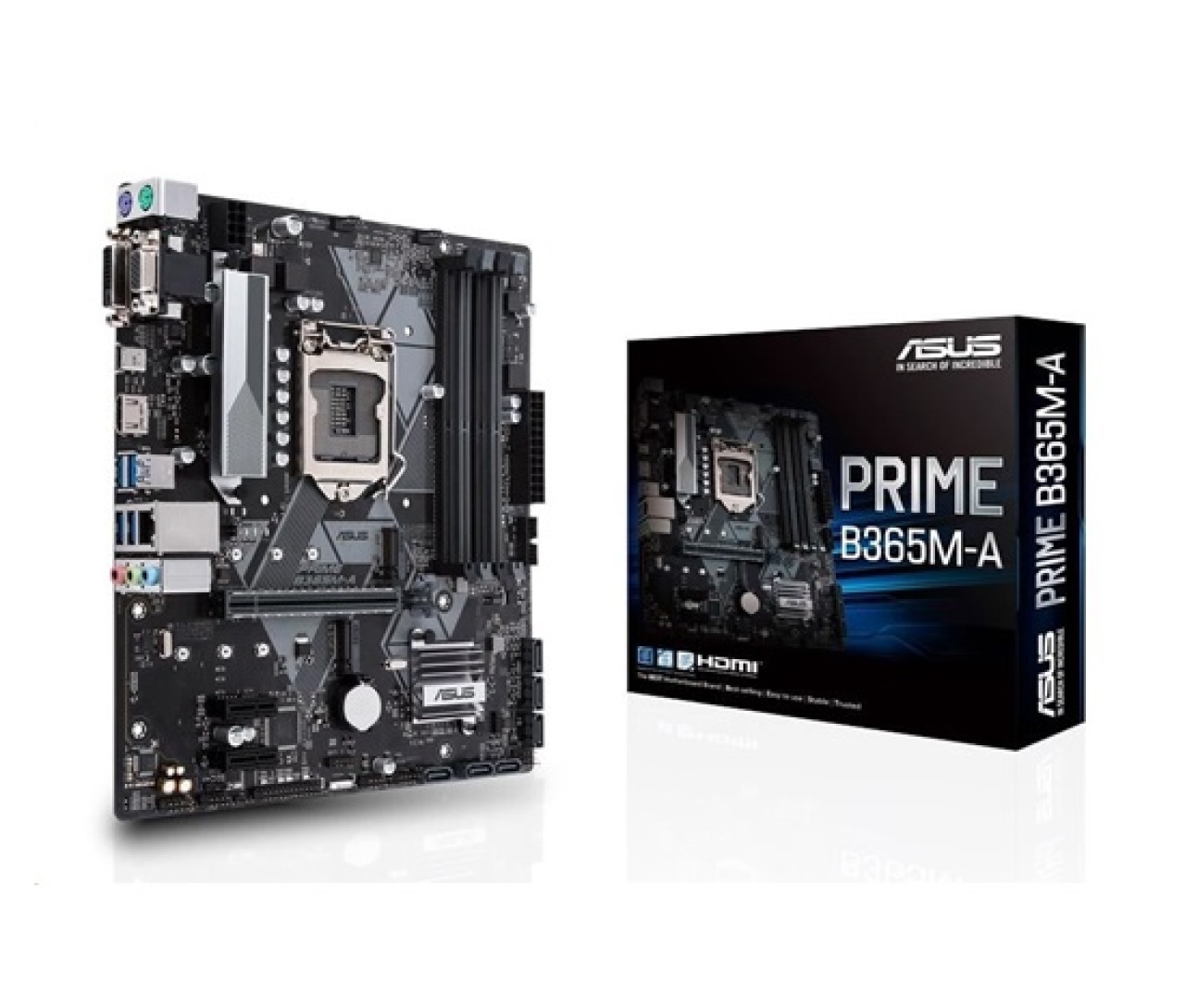

PodrobnostiPRIME B365M-AIntel LGA-1151 mATX motherboard with Aura Sync RGB header, DDR4 2666MHz, M.2 support, HDMI, Intel Optane memory ready, SATA 6Gbps
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
- Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
- 5X Protection III: Multiple hardware safeguards for all-round protection.
- ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware.
- Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds
TECHNICAL SPECIFICATIONSCPUIntel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.* Refer to www.asus.com for CPU support listChipsetIntel® B365MemoryIntel® B365 Chipset4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.GraphicIntegrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz- Supports D-sub with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 1024 MB (for iGPU exclusively)Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™Expansion Slots1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1StorageIntel® B365 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s), graySupport Raid 0, 1, 5, 10Intel® Rapid Storage Technology supportsIntel® Optane™ Memory ReadyLANRealtek® RTL8111H, 1 x Gigabit LANASUS LAN Guard AudioRealtek® ALC887 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Front Panel Jack-retaskingAudio Feature:- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity* Choose the chassis with HD audio module in front panel to support 8-channel audio output.USB PortsIntel® B365 Chipset: 7 x USB 3.1 Gen 1 up to 5Gbps port(s) (5 at back panel, 4 x Type-A+1 x Type-C, 2 at mid-board)Intel® B365 Chipset: 4 x USB 2.0/1.1 port(s) (4 at mid-board)Special FeaturesASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: Premium components provide better power efficiencyASUS OptiMem:- Optimem (Improved DDR4 stability)ASUS EPU:- EPU ASUS Exclusive Features:- AI Suite 3- Ai Charger - PC CleanerASUS Quiet Thermal Solution:- Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert 2+ASUS EZ DIY:- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeASUS Q-Design:- ASUS Q-DIMM M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)Back I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps4 x USB 3.1 Gen 1 Type-A 1 x 8-channel Audio I/OInternal I/O Ports1 x Aura RGB Strip Header1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices1 x TPM header1 x LPT header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x Chassis intrusion header1 x Speaker connectorAccessoriesUser''s manualI/O Shield2 x SATA 6Gb/s cable(s)2 x M.2 screws1 x Supporting DVDBIOS128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information ManageabilityWOL by PME, PXEOperating SystemWindows® 10 64-bitForm FactormATX Form Factor 9.6 inch x 8.6 inch (24.4 cm x 21.8 cm)Note* When a device in SATA mode is installed on the M.2_1 socket, SATA6G_1 port cannot be used.
