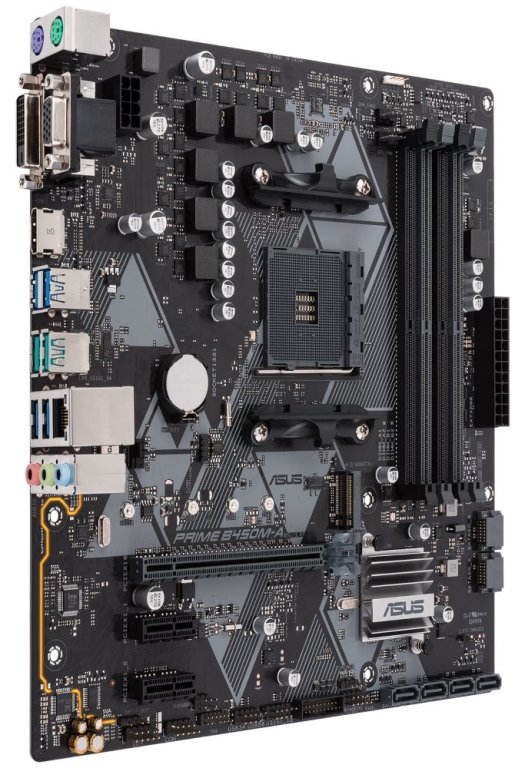

PodrobnostiPRIME B450M-AAMD AM4 mATX motherboard with Aura Sync RGB header, DDR4 3200MHz, M.2, HDMI 2.0b, SATA 6Gbps and USB 3.1 Gen 2
- Fan Xpert 2+: Flexible controls for ultimate cooling and silence, plus GPU-temperature sensing for cooler gaming
- Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 and native M.2
- ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware
- 5X Protection III: Multiple hardware safeguards for all-around system protection
TECHNICAL SPECIFICATIONSCPUAMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation ProcessorsChipsetAMD B450MemoryAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).GraphicIntegrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz- Supports D-sub with max. resolution 1920 x 1200 @ 60 HzExpansion SlotsAMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset2 x PCIe 2.0 x1StorageAMD B450 chipset: 4 x SATA 6Gb/s port(s)Support Raid 0, 1, 10AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors: 2 x SATA 6Gb/s port(s)Support Raid 0, 1, 10AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1LANRealtek® RTL8111H, 1 x Gigabit LAN Controller(s)ASUS LAN GuardAudioRealtek® ALC887 8-Channel High Definition Audio CODEC Audio Feature:- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity* Choose the chassis with HD audio module in front panel to support 8-channel audio output.USB PortsAMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation: 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)AMD B450 chipset: 2 x USB 3.1 Gen 2 port(s) (2 at back panel)AMD B450 chipset: 2 x USB 3.1 Gen 1 port(s) (2 at mid-board)AMD B450 chipset: 4 x USB 2.0/1.1 port(s) (4 at mid-board)Special FeaturesASUS 5X Protection III:- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: 6 Phase digital power designASUS Exclusive Features:- AI Suite 3- Ai Charger ASUS Quiet Thermal Solution:- Stylish Fanless Design Heat-sink solution- ASUS Fan Xpert 2+ASUS EZ DIY:- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- Multi-language BIOSASUS Q-Design:- ASUS Q-Slot- ASUS Q-DIMMBack I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 4 x USB 3.1 Gen 13 x Audio jack(s)Internal I/O Ports1 x Aura RGB Strip Header1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) 1 x Clear CMOS jumper(s)1 x Speaker connectorAccessoriesUser''s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVDBIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan ControlOperating SystemWindows® 10 64-bitForm FactormATX Form Factor 9.6 x 9.5 inch (24.4 x 24 cm)NoteThe M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
