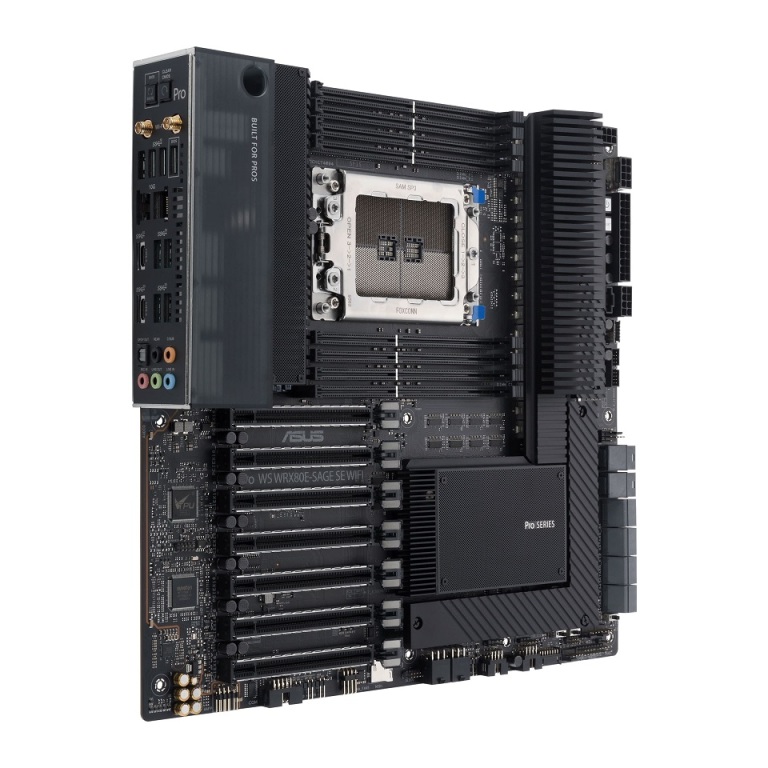

Asus PRO WS WRX80E-SAGE SE WIFI

Chipset: AMD WRX80 Chipset Rozměrový formát: Extended ATX Form Factor (309.8 mm x 330.2 mm) Podpora pro procesory: AMD® Ryzen™ Threadripper™ Pro Processors Patice procesoru: WRX8 socket Pozice na paměti: 8x DDR4 Podpora pro paměti: *3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory Max.velikost operační paměti: 2048 GB Podpora pro paměti typu: DDR4 *8 Channel Memory Architecture Grafická karta: Ne Multi GPU: Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology Zvuková karta: Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *Intel® X550-AT2 dual 10Gb Ethernet *2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) *Bluetooth v5.2 Rozšiřující sloty: *7x PCIe 4.0/3.0 x16 slot(s) RAID řadič: Ano SATA: *8x SATA 6Gb/s ports M.2: *1x M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) *1x M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) *1x M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) USB: *zadní USB porty ( celkem 10 ) *1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) *9x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®) *přední USB porty ( celkem 7 ) *1x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®) *2x USB 3.2 Gen 1 ports *4x USB 2.0 ports Interní porty: *1x 4-pin CPU Fan header(s) *1x 4-pin CPU OPT Fan header(s) *6x 4-pin Chassis Fan header(s) *1x VRM heatsink Fan header *1x Chipset Fan header *1x 24-pin Main Power connector *2x 8-pin +12V Power connector *2x 6-pin PCIe Graphics Card connector *1x 8-pin PCIe Power connector *3x M.2 slots (Key M) *8x SATA 6Gb/s ports *2x U.2 slots *1x USB 3.2 Gen 2 connector (support(s) USB Type-C®) *1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports *2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports *1x BMC switch *1x IPMI switch *1x Messange LED header *1x Micro SD card socket *2x LAN LED header(s) *1x Location LED header *1x Location button header *1x PSU_SMB header *1x SMART_PSU switch *1x VGA switch *1x VGA header *1x VPP_I2C header *1x COM Port header *1x FlexKey button *1x Front Panel Audio header (AAFP) *1x SPI TPM header (14-1pin) *1x Start button *1x 20-3 pin System Panel header with Chassis intrude function *1x RTC Battery header *1x Thermal Sensor header Externí porty: *1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) *9x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®) *1x ASUS Wi-Fi Module *2x Intel® X550-AT2 dual 10Gb Ethernet ports *5x Audio jacks *1x Optical S/PDIF out port *1x BIOS FlashBack™ button *1x Clear CMOS button Obsah balení: *6x SATA 6Gb/s cables *1x VGA cable *1x ASUS 2x2 Dual-Band Wi-Fi moving antennas *1x Hyper M.2 X16 Gen 4 Card *3x M.2 Rubber Package(s) *3x M.2 SSD screw package(s) *1x Q-connector *1x Support DVD *1x User manual BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/Workstation/Pro-WS-WRX80E-SAGE-SE-WIFI/techspec/.
