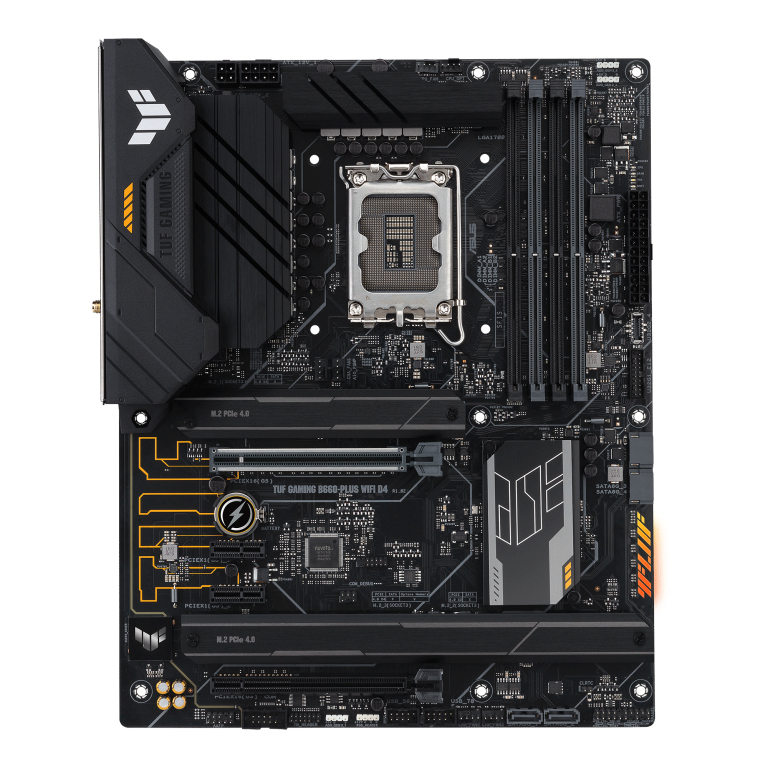

Asus TUF GAMING B660-PLUS WIFI D4

Chipset: Intel B660 Chipset Rozměrový formát: ATX ( 30.5 cm x 24.4 cm ) Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA1700 Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture Podpora pro paměti: DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Max.velikost operační paměti: 128 GB Podpora pro paměti typu: XMP Grafická karta: (na základě procesoru) *1 x DisplayPort *1 x HDMI port Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC *S/PDIF out port Síťová karta: *1 x Intel 2.5Gb Ethernet *Wi-Fi 6 (802.11 a/b/g/n/ac/ax) *Bluetooth v5.2 Rozšiřující sloty: *1 x PCIe 5.0/4.0/3.0 x16 slot *1 x PCIe 3.0 x16 slot (supports x4 mode) *2 x PCIe 3.0 x1 slots RAID řadič: RAID 0/1/5/10 SATA: 4 x SATA 6Gb/s ports M.2: 3 x M.2 slots USB: *Interní: *1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) *1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports *Externí: *1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) *1 x USB 3.2 Gen 2 port(s) (1 x Type-A) *3 x USB 3.2 Gen 1 port(s) (3 x Type-A) *1 x USB 2.0 port(s) (1 x Type-A) Interní porty: *Fan and Cooling related *1 x 4-pin CPU Fan header(s) *1 x 4-pin CPU OPT Fan header(s) *1 x 4-pin AIO Pump header(s) *3 x 4-pin Chassis Fan header(s) *Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *1 x 4-pin +12V Power connector *Storage related *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports *USB *1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) *1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports *Miscellaneous *3 x Addressable Gen 2 header(s) *1 x AURA RGB header(s) *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x 20-3 pin System Panel header with Chassis intrude function *1 x Thunderbolt header Externí porty: *1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) *1 x USB 3.2 Gen 2 port(s) (1 x Type-A) *3 x USB 3.2 Gen 1 port(s) (3 x Type-A) *1 x USB 2.0 port(s) (1 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Wi-Fi Module *1 x Intel 2.5Gb Ethernet port *5 x Audio jacks *1 x Optical S/PDIF out port BIOS: UEFI AMI BIOS, 128 Mb ROM.
