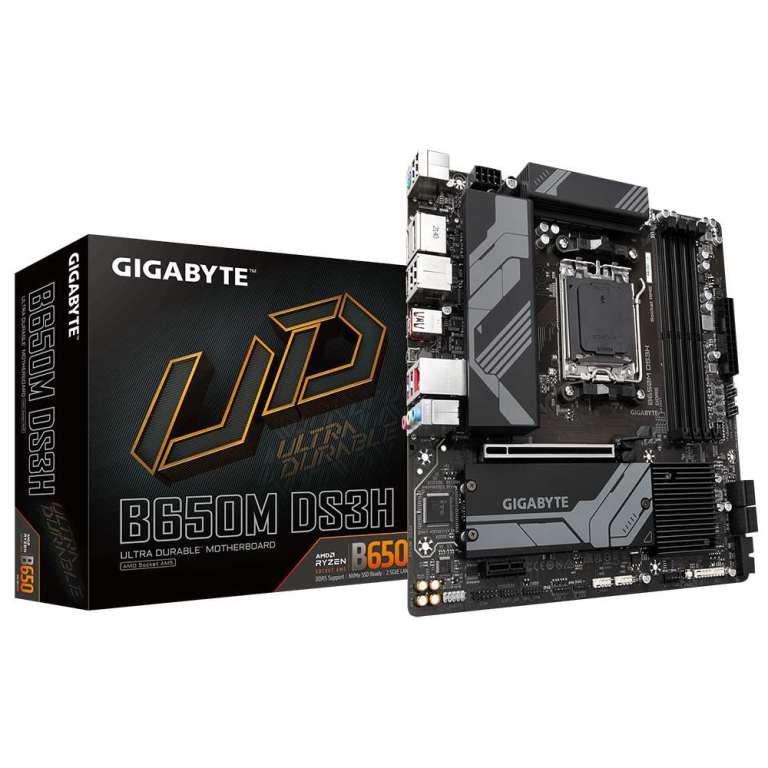

Gigabyte B650M DS3H

Chipset: AMD B650 Rozměrový formát: Micro ATX Form Factor; (24.4cm x 24.4cm) Podpora pro procesory: AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pro paměti: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity) Podpora pro paměti typu: non-ECC, XMP Grafická karta: (na základě procesoru) *2 x DisplayPorts 1.4, maximální rozlišení 3840x2160@144 Hz *1 x HDMI 2.1 port, maximální rozlišení 4096x2160@60 Hz Zvuková karta: Realtek Audio CODEC *2/4/5.1/7.1-channel Síťová karta: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Rozšiřující sloty: *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) *1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) RAID řadič: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 2 x M.2 Socket 3 connectors USB: *Interní: *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externí: *4 x USB 2.0/1.1 ports *2 x USB 3.2 Gen 1 ports *1 x USB 3.2 Gen 2 Type-A port (red) *1 x USB Type-C port, with USB 3.2 Gen 2 support Interní porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *1 x CPU fan header *3 x system fan headers *1 x addressable LED strip header *1 x RGB LED strip header *2 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x serial port header *1 x reset button *1 x reset jumper *1 x Clear CMOS jumper Externí porty: *4 x USB 2.0/1.1 ports *1 x PS/2 keyboard/mouse port *2 x DisplayPorts *1 x HDMI port *1 x USB 3.2 Gen 2 Type-A port (red) *1 x USB Type-C port, with USB 3.2 Gen 2 support *1 x Q-Flash Plus button *1 x RJ-45 port *2 x USB 3.2 Gen 1 ports *3 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobce: http://www.gigabyte.com/Motherboard/B650M-DS3H-rev-10#kf.
