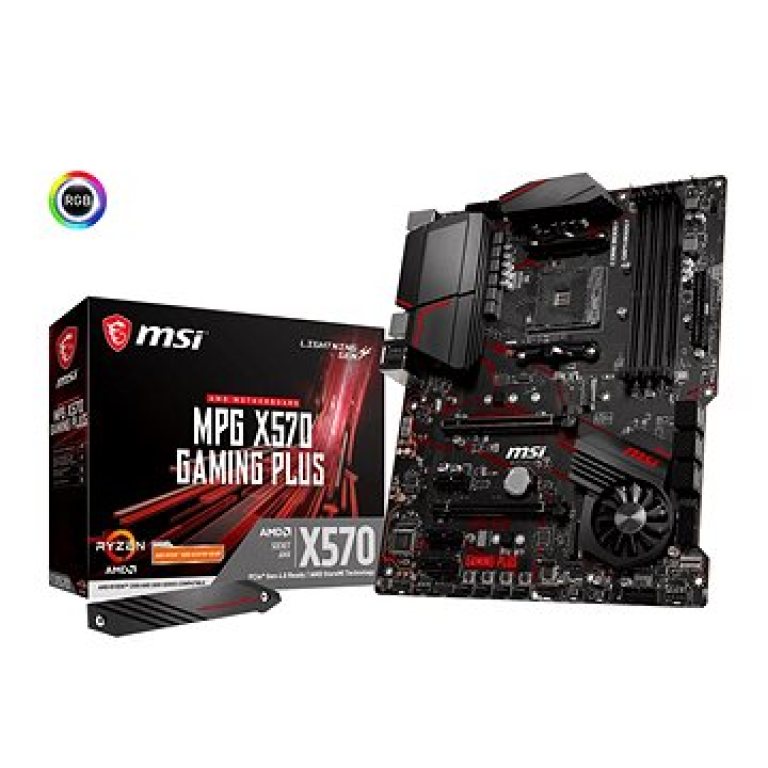

MSI MPG X570 GAMING PLUS

Chipset: AMD® X570 Chipset.Rozměrový formát: ATX Form Factor (30.4 cm x 24.3 cm).Podpora pro procesory: 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors.Patice procesoru: AM4.Pozice na paměti: 4x DDR4 memory slots,Dual channel memory architecture.Podpora pro paměti:.3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE.nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE.Max.velikost operační paměti: 128 GB.Podpora pro paměti typu: non-ECC, ECC,.Grafická karta: Maximální sdílená paměť 2048 MB.1x HDMI 1.4 port,maximální rozlišení 4096x2160 @24Hz.Zvuková karta: Realtek® ALC1220 Codec, 7.1-Channel High Definition Audio, (Podpora Optical S/PDIF output).Síťová karta: 1x Realtek® 8111H Gigabit LAN Controller.Rozšiřující sloty:.1x PCIe 4.0/3.0 x16 slot (PCI_E1).1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode).3x PCIe 3.0 x1 slots.RAID řadič: RAID 0, RAID 1 and RAID 10.SATA:.AMD® X570 Chipset.4x SATA 6Gb/s ports(SATA3-SATA6).ASMedia ASM1061.2x SATA 6Gb/s ports (SATA1, SATA2).M.2: 2x M.2 slots (Key M).USB:.AMD® X570 Chipset.6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports na zadním panelu, 4 ports přes interní USB 3.2 Gen 1 connectors).6x USB 2.0 (High-speed USB) ports (2 Type-A ports na zadním panelu, 4 ports přes interní USB 2.0 connectors).AMD® Processor.2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) na zadním panelu.2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports na zadním panelu.Interní porty:.1x 24-pin ATX main power connector.1x 8-pin ATX 12V power connector.1x 4-pin ATX 12V power connector.6x SATA 6Gb/s connectors.2x USB 2.0 connectors (supports additional 4 USB 2.0 ports).2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports).1x 4-pin CPU fan connector.1x 4-pin water-pump connector.4x 4-pin system fan connectors.1x Front panel audio connector.2x System panel connectors.1x TPM module connector.1x Serial port connector.1x Clear CMOS jumper.1x Chassis Intrusion connector.2x 4-pin RGB LED connectors.2x 3-pin RAINBOW LED connectors.4x EZ Debug LEDs.Externí porty:.1x Keyboard / Mouse.4x USB 3.2 Gen1 Type-A.1x LAN.1x Audio Connectors.Flash BIOS Button.2x USB 2.0.1x HDMI.1x USB 3.2 Gen2 Type-C.1x USB 3.2 Gen2 Type-A.1x Optical S/PDIF out.BIOS: AMI BIOS 7C37vA37.Stránka výrobce: https://www.msi.com/Motherboard/MPG-X570-GAMING-PLUS/Overview.
